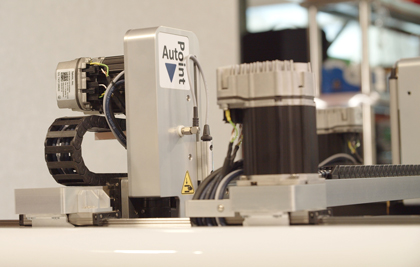

AP-MARS

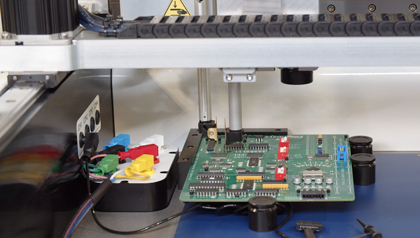

Automatic dual-headed probing system for simplified reverse engineering and testing of circuit card assemblies.

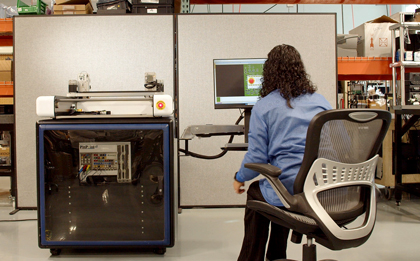

The AutoPoint MARS combines the power of PinPoint technology, TestVue software, and Robotic probing to meet today’s demanding circuit card test requirements, yesterday’s obsolescence issues, and tomorrow's life cycle sustainment needs all from one integrated system.
Key benefits
- Generate circuit card data for schematic generation
- Create schematics for undocumented boards.
- Generate BoMs, Net Lists, X, Y Coordinates.
- Use data to build test routines for existing CCAs or new manufactured cards
- Create bare board test routines.
- Create populated board test routines.
- Power OFF – Opens, Shorts, Signature Analysis, Resistance, Inductance, and Capacitance.
- Power ON – Voltage, Frequency, Pulse, Waveforms, Stimulus-Response.
- Optional: Full PinPoint Integration, Automated Guided Probe, Boundary Scan, 3rd Party Instrumentation.
