PinPoint Multi-function Analog Card.

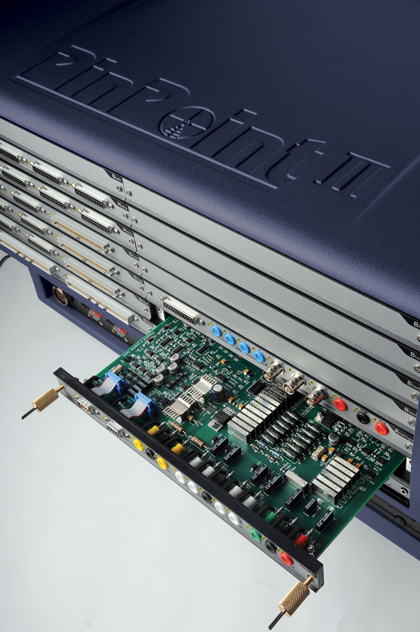

The Multi-function Analog Card adds a suite of integrated instruments to the PinPoint IIR or PinPoint 3-PXIe systems.
Features and Specifications
- Counter Timer with 1.5GHz input to perform Frequency, Period, Time A-B, Unit Count, and Frequency Radio measurements. Input volatge range AC coupled.
- 5 1⁄2 digit DMM (Digital Multimeter) capable of measuring AC, DC, Current, capacitance, and 4-wire resistance. Choice of high accuracy and program run-time optimization modes. Fast converison rates.
- Oscilloscope 4 Channels plus Trigger @500MSPS and eah at 200MHz bandwidth. Option to alternate channels 1&2, 3&4 into double data rate, permitting 1 GSPS.
- Arbitrary Waveform Generator> with 4 outputs referenced to ground. The waveform generator is capable of providing Sine, Square, Triangle, and Sawtooth waveforms at up to 10MHz, as well as DC offset levels and user-defined waveforms/ All Channels can be synchronized to generate multi-phase signals
