PinPoint 3-PXIe
Component-level diagnostics and high-performance functional testing in one system.
The PinPoint 3-PXIe combines over 30 years of development of the PinPoint Circuit Card diagnostic system with industry standard PXIe technology.
The PinPoint 3-PXIe is the ideal solution for addressing unlimited test applications and troubleshooting to the component level, all from one system.
Key benefits

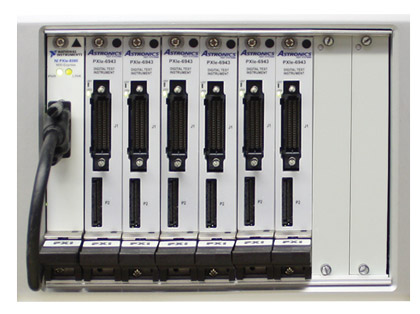

- PXIe 9-slot chassis (8 hybrid slots), features an all-hybrid backplane to meet a wide range of high-performance test and measurement application needs.
- Hybrid slots for instrumentation flexibility = compatibility with PXI, PXIExpress, CompactPCI, and CompactPCI Express modules.
- Performance—up to 8 GB/s system and 2 GB/s per-slot dedicated bandwidth.

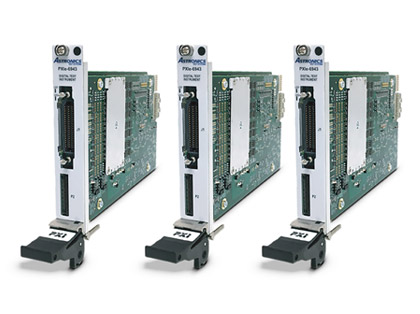

- High-Speed Digital I/O with the PXIe-6943 for a complete state-of-the-art digital solution at the subsystem level
- Integration of the PXIe-6943 supports functional edge testing of Digital I/O up to 50MHz.
- Suitable for legacy or new applications
- Software for converting ATLAS based TPS & more
