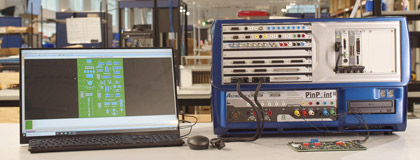

PinPoint IIR
The Diagnosys PinPoint II R provides industry-leading capability for the test and fault finding of the most challenging PCB (or CCAs). Allowing you to select and apply different test techniques on a single circuit, you can ensure maximum fault coverage.
Conforming to defense standards for electronic, physical and environmental requirements, including the handling of ATML test result data and having US National and NATO stock numbers, the PinPoint II R is the preferred choice for many defense organizations. Providing a wide range of test capabilities, including the optional integration of PXI and GPIB instruments, the PinPoint II R delivers excellent test and reliable diagnostic results.
The PinPoint II R is also available in an industry standard 19” rack mounted version to facilitate integration with functional test systems. In this format it provides a Diagnostic Sub-System for the test and fault finding of PCBs.
Key benefits
- Provides maximum fault coverage, accurately identifying the cause of all failures
- Supports reverse engineering of electrical circuits by generating complete diagrams, allowing you to test circuits when information is not available
- Reduces No Fault Found (NFF) by in-depth test
- Allows integration of third party options and instruments
- Significantly reduces the cost of test development
- Saves development time and money, and ensure safety
- Meets physical, environmental and electrical specifications
- Interfaces with ATML test result data to deliver precise fault diagnosis
