The AutoPoint MARS combines the power of PinPoint technology, TestVue software, and Robotic probing to meet today’s demanding circuit card test requirements, yesterday’s obsolescence issues, and tomorrow's life cycle sustainment needs all from one integrated system.

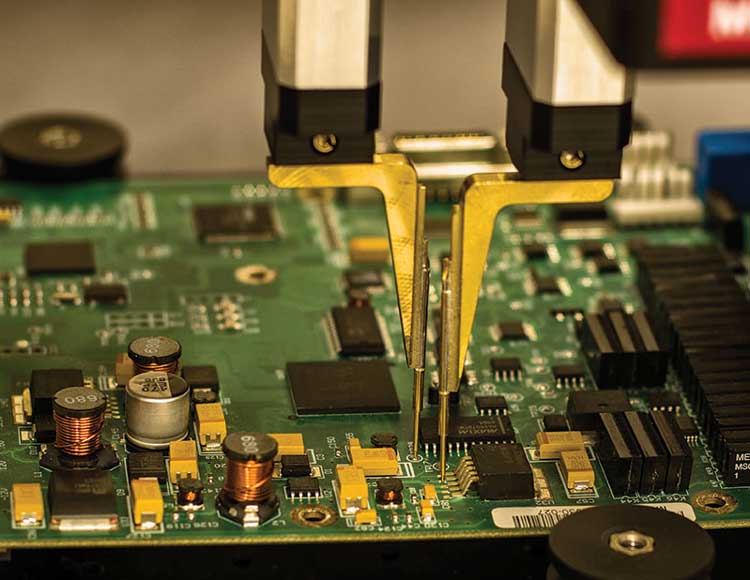

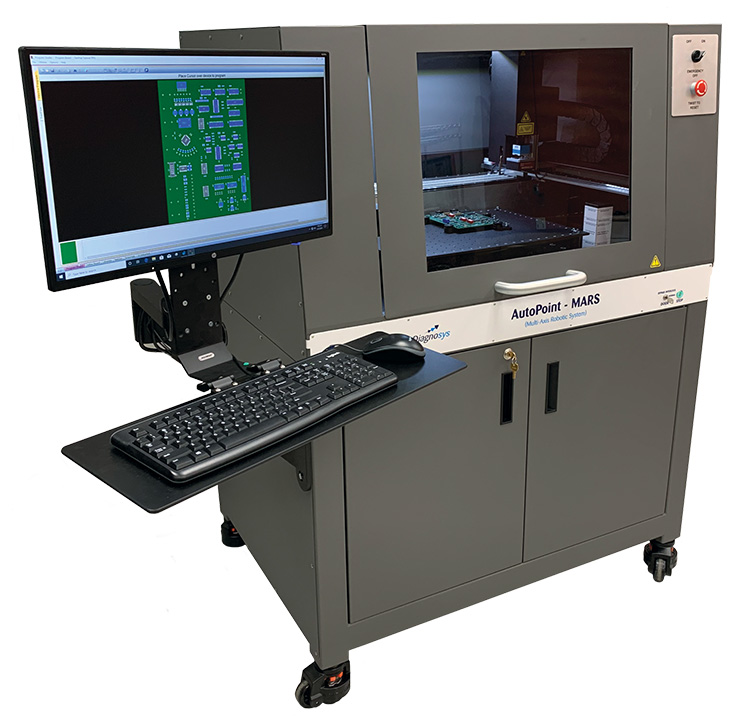

Multi-Axis Robotic probing System for reverse engineering and testing of circuit card assemblies.

  • Generate circuit card data for schematic generation.
  • Create schematics for undocumented boards.
  • Generate BoMs, Net Lists, X, Y Coordinates.
  • Use data to build test routines for existing CCAs or new manufactured cards.
  • Create bare board test routines.
  • Create populated board test routines.
  • Power OFF – Opens, Shorts, Signature Analysis, Resistance, Inductance, and Capacitance.
  • Power ON – Voltage, Frequency, Pulse, Waveforms, Stimulus-Response.
  • Optional

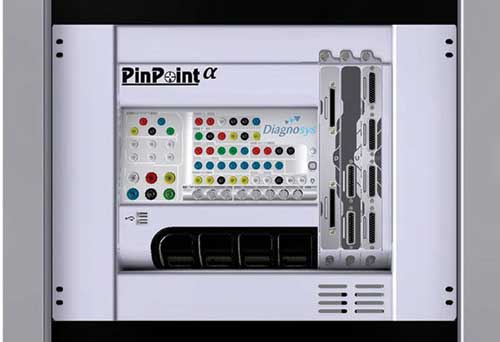

    • Full PinPoint Integration
    • Automated Guided Probe
    • Boundary Scan
    • 3rd Party Instrumentation

AutoPoint MARS - Multi-Axis Robotic System Features

Circuit Interrogation Analysis
The AutoPoint - MARS employs a unique technique referred to as Circuit Interrogation Analysis (CIA) which drastically reduces the amount of probing iterations required to learn the interconnectivity. The data collected during this process can also be used as part of the diagnostic and test strategy if required.
